Desktop Christmas Tree

This STEMFIE project builds a small Christmas tree you can assemble in under 15 minutes and decorate using coloured STEMFIE fasteners.

Information  –   Parts list  –   Build plates  –   Downloads  –   Assembly steps  –   Gallery

Information

• Number of 3D-printed parts: 86
• Number of build plates: 6 plates < 140 x 140 mm)
• Non-printed items: None
• Tools: Spanner (SPN-TOL-0004) and driver (SPN-TOL-0001)
• Assembly time: 15 minutes

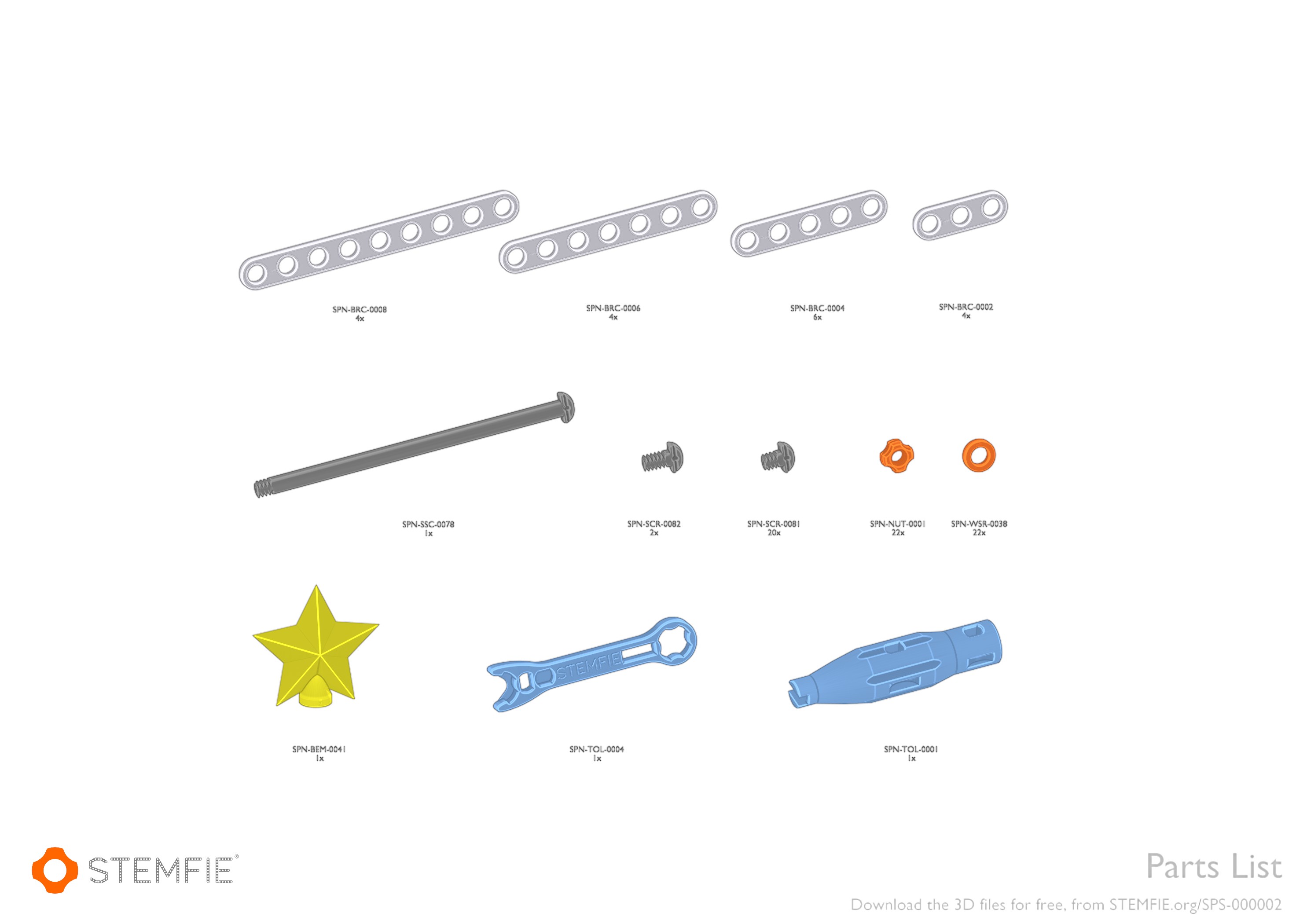

Parts list

Click the links below to download each individual STL file. You can also download the ready-made build plates.

• Brace STR ERR BU03x01x00.25 - SPN-BRC-0002 (4x - green)
• Brace STR ERR BU05x01x00.25 - SPN-BRC-0004 (4x - green)
• Brace STR ERR BU05x01x00.25 - SPN-BRC-0004 (2x - gray)
• Brace STR ERR BU07x01x00.25 - SPN-BRC-0006 (4x - green)
• Brace STR ERR BU09x01x00.25 - SPN-BRC-0008 (4x - green)
• Nut RH BU01.00x5mm - SPN-NUT-0001 (18x - coloured)
• Nut RH BU01.00x5mm - SPN-NUT-0001 (4x - gray)
• Screw FL-RH RHD BU00.25 - SPN-SCR-0081 (18x - green)
• Screw FL-RH RHD BU00.25 - SPN-SCR-0081 (2x - gray)
• Screw FL-RH RHD BU00.50 - SPN-SCR-0082 (2x - gray)
• Shoulder Screw RH RHD BU09.50 - SPN-SSC-0078 (1x - gray)
• Ornament Star - Five-Pointed (threaded) BU01x02x02 - SPN-ORN-0001 (1x - yellow)
• Washer FRE BU01.00x00.25 - SPN-WSR-0038 (20x - brown)
• Washer FRE BU01.00x00.25 - SPN-WSR-0038 (2x - gray)
• Tool Driver NUT SCR PIN THR - SPN-TOL-0001 (1x)
• Tool Spanner NUT - SPN-TOL-0004 (1x)
• Instruction URL sign

Build plates

Right-click and save the the following build plates (.3mf file format).

• Braces - Green
• Foot - Gray
• Nuts - Coloured
• Screws - Green
• Star - Yellow
• Washers - Brown
• Complet set (all four plates above in one file - 230 x 183 mm)

Downloads

You can download the complete file set for this project from this link. The files for 3D printing are available as individual files and as ready-made build plates.

Assembly steps

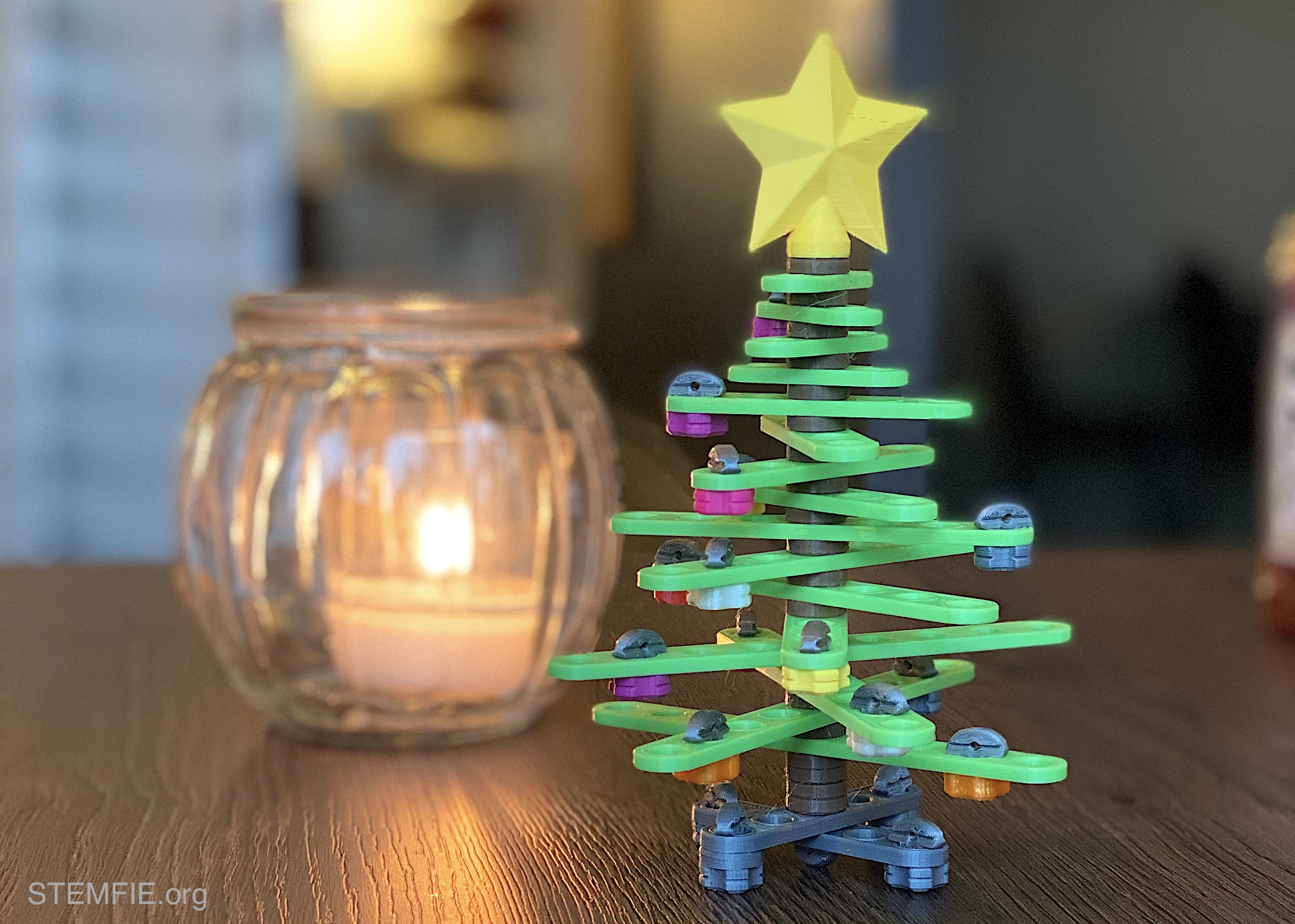

Gallery
